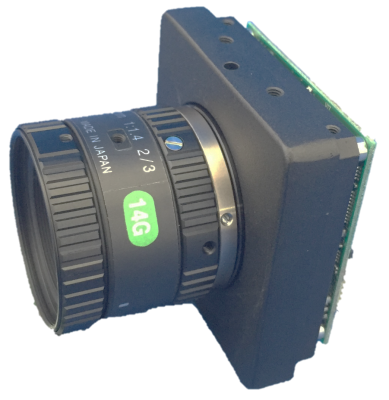

PCH-170A
MONOCHROME BOARD CAMERA

PCH-170A

MONOCHROME BOARD CAMERA   PCH-170A

 1/3" CCD
 510 x 492 pixel
 INT & EXT Genlock
 High Sensitivity


PCH-170A Specification

Imaging Devic: 1/3" CCD ICX404AL
Total Pixels: 537(H) x 505(V)
Effective Pixels: 510(H) x 492(V)
Lens: CS Mount
Genlock: Internal / External   Auto Selection
External Signal: External L/L(Option)
Scanning System: 2:1 Interlace
Video Output: 1Vp-p 75Ω
Resolution: More Than 380 TVL
Min. Illumination: Less Than 1.5 lux (AGC ON)
S/N Ratio: More Than 56 dB
Electronic Iris: ON(1/60 - 1/10000sec) / OFF
Horizontal Sync: 15.734 kHz
Vertical Sync: 59.94 Hz
Fixed Shutter: OFF
Gamma: 0.45
AGC: ON / OFF(Option)
BLC: Average / Center
Iris Lens: DC Iris / Video Iris
Power Supply: DC12V ± 10%
Current Consumption: Max 120mA
Operating Temperature: -5°C ∼ +40°C
Storage Temperature: -20°C ∼ +60°C
Dimension: 50.2㎜(W) x 50.2㎜(H) x 22㎜(D)
Weight: 60g(within Lens)
